Suitable For

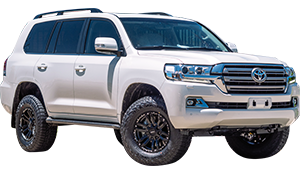

A vehicle image representing the page's contents

Type:

Landcruiser

Model:

200 Series (11/2007 to 2021)

Variant:

200 Series - 0"-2" Lift - (UZJ / URJ / GRJ / VDJ 200)

Detail:

Wagon

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

GRJ200 4.0L 6 Cyl. Petrol

Linear Rate
Standard Height

Part Number

C59-536

Linear Rate
Raised Height (50mm Lift)

Part Number

C59-540

UZJ200 4.7L V8 Petrol
URJ200 5.7L V8 Petrol

Linear Rate
Raised Height (25mm Lift)

Part Number

C59-538

Linear Rate
Raised Height (35mm Lift)

Part Number

C59-540

Linear Rate
Raised Height (50mm Lift)
0-50Kg

Part Number

C59-542

Linear Rate
Raised Height (50mm Lift)
80-100Kg

Part Number

C59-544

VDJ200 4.5L Twin Turbo
V8 Diesel

Linear Rate
Raised Height (30mm Lift)

Part Number

C59-540

Linear Rate
Raised Height (50mm Lift)
0-50Kg

Part Number

C59-544

Linear Rate
Raised Height (50mm Lift)
80-100Kg

Part Number

C59-568

Shock Absorber

Twin Tube Nitro-Gas
Extra Heavy Duty

Part Number

GS59-690

Twin Tube Nitro-Gas
Monster Shock
Extra Heavy Duty
45mm Piston, 75mm Body

Part Number

GS59-734

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 222mm / 8.74"

Part Number

IMS59-60688

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 222mm / 8.74"

Part Number

MRA59-A688

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-35mm Extension

Part Number

BS59-560

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Control Arm

Upper Control Arm

Forged Aluminium (Pair)
Adjustable Camber & Castor
Rubber Bushes
With Ball Joint

Part Number

UCA59-201K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-001K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Strut Top Cap

Part Number

SC59-006

Diff Drop Kit

Part Number

DD59-530K
