Suitable For

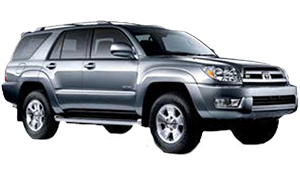

A vehicle image representing the page's contents

Type:

4 Runner

Model:

4th Generation - GRN215, KDN215, TRN215 (2003 to 2009)

Variant:

3" Lift

Detail:

4.0L V6 Petrol, 4.7L V8, 3.0L Diesel,
75mm Lift (3")

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Below Coil Springs For Use With GS59-220 Shock Absorber

4.0L V6 Petrol
3.0L Diesel

Linear Rate
Raised Height (75mm Lift)

Part Number

C59-302

Linear Rate
Raised Height (75mm Lift)
50-100Kg

Part Number

C59-314

4.7L V8

Linear Rate
Raised Height (70mm Lift)

Part Number

C59-314

Linear Rate
Raised Height (70mm Lift)
50-100Kg

Part Number

C59-354

Shock Absorber

Twin Tube Nitro-Gas
(Long Travel)

Part Number

GS59-220

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 226mm / 8.9"

Part Number

IMS59-50220

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 226mm / 8.38"

Part Number

MRA59-A220

X - Centre of Eye to Spring Seat

Spring Seat Is 13mm Higher Than Original

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-002K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
With Ball Joint

Part Number

UCA59-202K

Strut Top Cap

Strut Top Cap

Part Number

SC59-001

Strut Spacer

5mm Trim Packer
(10mm Lift)

Part Number

PS59-4030

Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers

Diff Drop Kit

Icon for a Dobinsons Diff Drop Kit

Diff Drop Kit

Part Number

DD59-527K

Must Fit When Using Long Travel Shock Absorbers GS59-220, IMS59-50220 & MR59-50220 To Prevent C.V. Bind

Rear

Coil Spring

Linear Rate
Raised Height (45mm Lift)
No Load

Part Number

C59-325

Linear Rate
Raised Height (45mm Lift)
100-200Kg Constant Load

Part Number

C59-327

Linear Rate
Raised Height (45mm Lift)
300-400Kg Constant Load

Part Number

C59-329

Variable Rate
Raised Height (60mm Lift)

Part Number

C59-675V

Variable Rate
Raised Height (60mm Lift)
80-160Kg Constant Load

Part Number

C59-677V

Variable Rate
Raised Height (75mm Lift)
No Load

Part Number

C59-677V

Variable Rate
Raised Height (75mm Lift)
150-250Kg Constant Load

Part Number

C59-701V

Variable Rate
Raised Height (75mm Lift)
400Kg Constant Load

Part Number

C59-749V

Shock Absorber

Twin Tube Nitro-Gas
Comfort Option
Extra Soft - No Load

Part Number

GS59-745

Twin Tube Nitro-Gas
Standard Height Only

Part Number

GS59-637

Twin Tube Nitro-Gas

Part Number

GS59-701

Twin Tube Nitro-Gas
(Long Travel)

Part Number

GS59-575

GS59-575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out

IFP Monotube Shock (IMS)

Part Number

IMS59-50701

IFP Monotube Shock (IMS)
Extra Heavy Duty
(Long Travel)

Part Number

IMS59-50575

IMS59-50575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A701

Monotube Remote Reservoir
(3-Way Adjustable)
(Long Travel)

Part Number

MRA59-A575

MRA59-A575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out

Bump Stop

Hydraulic Bump Stop

Threaded Body
56mm Diameter
46mm Travel

Part Number

HBS56-009

Hydraulic Bump Stop Mounting

Hydraulic Bump Stop Mounting Kit
(Bolt In)
(Excludes Bump Stops)

Part Number

HBS59-010FK

Control Arm

Upper Control Arm

Heavy Duty Rear Upper
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA59-522K

Lower Control Arm

Icon for a Dobinsons Lower Control Arm

Heavy Duty Rear Lower
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA59-520K

Panhard Rod

Adjustable Panhard Rod
(Complete with Bushes)

Part Number

PR59-1423

Sway Bar Extension

Adjustable Sway Bar Extension
(Suits 2" to 4" Lift)

Part Number

SE59-529
