Suitable For

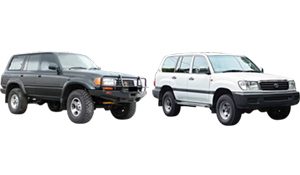

A vehicle image representing the page's contents

Type:

Landcruiser

Model:

80 Series (05/1990 to 11/2007), 105 Series (08/1991 to 11/2007)

Variant:

80 / 105 Series - 4" Lift - (FZJ, HZJ, HDJ 80/105)

Detail:

Wagon,
100mm (4”) Lift

Download Catalogue Page

WARNING - 75MM (3”) OR HIGHER LIFT

The suspension components listed on this page are for off-road use only.

•Refer to Local Laws before Fitting to Registered/Road Vehicles

•An Engineering Certificate may be required

•Handling Characteristics will Diminish on Lifts Above 50mm (2”)

The following modifications (but not limited to) need to be made to the vehicle before the kit is fitted.

•Adjustable Panhard Rods

•Modified Leading / Trailing Arms

•Brake Hoses

•Extended Bump Stops

•Gear Box & Drive Line Modifications

•Steering Arms

•Swaybar Modification

Dobinsons Spring & Suspension do not accept any responsibility for injury caused to person or property through the use of the products listed on this page.

These products do not come with any warranty or guarantee.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Raised Height (4" Lift)
Heavy Duty
50-80Kg

Part Number

C59-308

Linear Rate
Raised Height (4" Lift)
Heavy Duty
80-100Kg

Part Number

C59-312

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS45-912

IFP Monotube Shock (IMS)

Part Number

IMS45-60912

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA45-A912

Shock Absorber Reservoir Mounting

Reservoir Mounting Bracket Kit

Part Number

RM59-030

Recommended For Optimal Remote Reservoir Fitment, Positioning & Strength

Steering Damper

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD59-824

Adjustable Performance Remote Reservoir Damper

Part Number

SS59A824

Bump Stop

Hydraulic Bump Stop

Replaces OEM Inner Coil Bump Stops For Smoother Bottom Out And Reduced Bucking

Height Adjustable - Can Be Used As Bump Stop Extension Kit

Threaded Body
56mm Diameter
46mm Travel
(0"-4" Shocks)

Part Number

HBS56-009

Threaded Body
56mm Diameter
50mm Travel
(5"+ Shocks)

Part Number

HBS56-006

Hydraulic Bump Stop Mounting

Hydraulic Bump Stop Mounting Kit
(Bolt In)
(Excludes Bump Stops)

Part Number

HBS59-012FK

Radius Arm Bush

Raising Vehicle Will Effect Castor Angle. A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.

Adjustable Front Radius Arm Castor Kit
Angle Settings: ±0° or ±2.5°
4 x Polyurethane Eccentric Bushes

Part Number

PB59-503K

Fixed Rubber Front Radius Arm Castor Kit
Angle Setting: ±2.5°
4 x Rubber Eccentric Bushes

Part Number

RB59-548K

Radius Arm Bush

Radius Arm Bushes
Arm to Diff
4 x Rubber Bushes

Part Number

RB59-536K

Arm to Chassis Bush Kit
2 x Rubber Bushes

Part Number

RB59-534K

Castor Plate Kit

5° Castor Plate Kit (Suits Both Arms)

Part Number

WA59-514K

Panhard Rod

Adjustable Panhard Rod
Right Hand Drive
(Complete with Bushes)

Part Number

PR59-1404

Adjustable Panhard Rod
Left Hand Drive
(Complete with Bushes)

Part Number

PR59-1408

Sway Bar Extension

Adjustable Sway Bar Extension
(Suits 2" to 6" Lift)

Part Number

SE59-516

Coil Spacer

5mm

Part Number

PS59-4001

10mm

Part Number

PS59-4002

20mm

Part Number

PS59-4003

30mm

Part Number

PS59-4004
