Suitable For

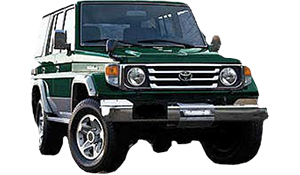

A vehicle image representing the page's contents

Type:

Landcruiser

Model:

70 Series (1999 to 2004)

Variant:

71 / 74 / 76 Series - (FZJ/HZJ 71, 74, 76)

Detail:

SWB, MWB, LWB

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Standard Height

Part Number

C59-250

Linear Rate
Raised Height (50mm Lift)
Comfort Option
Up to 50Kg

Part Number

C59-246

Linear Rate
Raised Height (50mm Lift)
Up to 50Kg

Part Number

C59-248

Linear Rate
Raised Height (50mm Lift)
Super Heavy Duty
50-100Kg

Part Number

C59-252

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS45-114

Steering Damper

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD59-824

Adjustable Performance Remote Reservoir Damper

Part Number

SS59A824

Radius Arm Bush

Raising Vehicle Will Effect Castor Angle. A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.

Adjustable Front Radius Arm Castor Kit
Angle Settings: ±0° or ±2.5°
4 x Polyurethane Eccentric Bushes

Part Number

PB59-503K

Fixed Rubber Front Radius Arm Castor Kit
Angle Setting: ±2.5°
4 x Rubber Eccentric Bushes

Part Number

RB59-522K

Under Body Bush Kit

Kit Includes Front & Rear Under Body Bushes

Kit Contains:
2 x Front Panhard Rod Bush
2 x Front Leading Arm to Diff Bush
4 x Front Leading Arm to Chassis Bush

Part Number

PB59-1261K

Rear

Leaf Spring

FZJ/HZJ 74 MWB

Right Hand Side
7 Leaves
Plus 1 Spacer Leaf
Raised Height (50mm Lift)

Part Number

L59-074-R RH

Left Hand Side
7 Leaves
Plus 1 Spacer Leaf
Raised Height (50mm Lift)

Part Number

L59-074-R LH

FZJ/HZJ 76 LWB

7 Leaves
Raised Height (50mm Lift)
250Kg Constant Load

Part Number

L59-021-R

FZJ/HZJ 71 SWB

Right Hand Side
7 Leaves
Plus 1 Spacer Leaf
Raised Height (50mm Lift)

Part Number

L59-071-R RH

Left Hand Side
7 Leaves
Plus 1 Spacer Leaf
Raised Height (50mm Lift)

Part Number

L59-071-R LH

Shock Absorber

Twin Tube Nitro-Gas
Comfort Option
Light Load

Part Number

GS59-649

Twin Tube Nitro-Gas
Extra Heavy Duty
(Big Bore)

Part Number

GS59-651

Spring & Shackle Bush Kit

Kit Contains:
2 x PB59-1538 (F)
4 x PB59-1537 (R)
4 x PB59-1536 (C)

Part Number

PB59-1090K

U-Bolt Kit

Suits 71 SWB
Kit Contains:
2 x UB59-453-3

Part Number

UB59-453-3K

Suits 74 MWB
Kit Contains:
2 x UB59-453-3

Part Number

UB59-453-3K

Suits 76 LWB
Kit Contains:
2 x UB59-453-1

Part Number

UB59-453-1K

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK59-051

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-044
