Suitable For

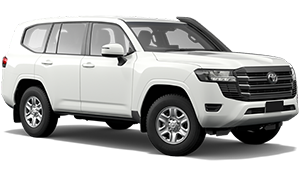

A vehicle image representing the page's contents

Type:

Landcruiser

Model:

300 Series (2021 on)

Variant:

300 Series - 3" Lift - (GRJ, FJA, VJA)

Detail:

4x4
75mm Lift (3") Front, 30mm to 50mm Lift (2" to 3") Rear

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

GRJ300 4.0L 6 Cyl. Petrol

Linear Rate
Raised Height (75mm Lift)

Part Number

C59-820

Linear Rate
Raised Height (75mm Lift)
70-100Kg

Part Number

C59-822

FJA300 3.3L Diesel
VJA300 3.5L Petrol

Linear Rate
Raised Height (75mm Lift)

Part Number

C59-844

Linear Rate
Raised Height (75mm Lift)
80-100Kg

Part Number

C59-846

Shock Absorber

Shocks Do Not Suit Sahara ZX And GR Sport Models With Factory Electronic Shock Absorbers

Twin Tube Nitro-Gas
Heavy Duty

Part Number

GS59-440

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 237mm / 9.3" To Steel

Part Number

IMS59-60440

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 237mm / 9.3" To Steel

Part Number

MRA59-A440

X - Centre of Eye to Spring Seat

Bump Stop

Icon for a Dobinsons Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-35mm Extension

Part Number

BS59-560

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Strut Top Cap

Part Number

SC59-014

Control Arm

Upper Control Arm

(Pair) Adjustable Camber
Increased Castor
With Ball Joint
(Long Travel)

Part Number

UCA59-212K

Rear

Coil Spring

Due To Lower Factory Ride Heights, Some Middle Eastern Vehicles May Lift 40mm Higher Than Listed

Variable Rate
Raised Height (10mm Lift)
This Variable Rate Coil Allows Less Height Change and Provides a Firmer Ride When Loading

Part Number

C59-817V

Variable Rate
Raised Height (30mm Lift)
0-50Kg Constant Load

Part Number

C59-819V

Variable Rate
Raised Height (30mm Lift)
100-200Kg Constant Load

Part Number

C59-821V

Variable Rate
Raised Height (30mm Lift)
280-400Kg Constant Load

Part Number

C59-823V

Variable Rate
Raised Height (50mm Lift)
0-50Kg Constant Load

Part Number

C59-851V

Variable Rate
Raised Height (50mm Lift)
280-400Kg Constant Load

Part Number

C59-853V

Shock Absorber

Shocks Do Not Suit Sahara ZX And GR Sport Models With Factory Electronic Shock Absorbers

Twin Tube Nitro-Gas

Part Number

GS59-441

IFP Monotube Shock (IMS)

Part Number

IMS59-60441

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A441

Requires RM59-037 For Non-KDSS Models

Panhard Rod

Adjustable Panhard Rod
(Complete with Bushes)

Part Number

PR59-1421

Recommended for Lifts Above 35mm to Correct Wheel Alignment.

Bump Stop

Hydraulic Bump Stop

Threaded Body
56mm Diameter
46mm Travel
(0"-4" Shocks)

Part Number

HBS56-009

Hydraulic Bump Stop Mounting

Hydraulic Bump Stop Mounting Kit
(Bolt In)
(Excludes Bump Stops)

Part Number

HBS59-013FK

Control Arm

Lower Control Arm

Icon for a Dobinsons Lower Control Arm

Adjustable Lower Control Arms (Pair)

Part Number

WA59-547K

Sway Bar

30mm Bar
Heavy Duty

Part Number

SB59-1957

Sway Bar Extension

Adjustable Extended Sway Bar Link
(Suits 2" to 3" Lift)

Part Number

SE59-591

Recommended for Lifts Above 35mm to Correct Wheel Alignment.
