Suitable For

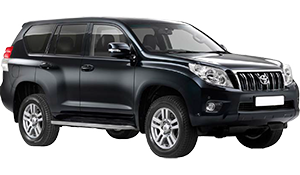

A vehicle image representing the page's contents

Type:

Landcruiser Prado

Model:

150 Series (2010 on)

Variant:

KDJ150, GRJ150, KDJ155 (3" Lift)

Detail:

SWB & LWB Wagon,
Does Not Suit Models with Self-Levelling Suspension
75mm Lift (3")

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

SWB & LWB Petrol
Without KDSS

Linear Rate
Raised Height (75mm Lift)
70-100Kg

Part Number

C59-350

75mm Lift When Fitted With IMS59-50700C & MRA59-A700B Shock Absorbers

Linear Rate
Raised Height (85mm Lift)

Part Number

C59-302

85mm Lift When Fitted With IMS59-50700C & MRA59-A700B Shock Absorbers

SWB & LWB Diesel
Without KDSS

Linear Rate
Raised Height (75mm Lift)

Part Number

C59-352

75mm Lift When Fitted With IMS59-50700C & MRA59-A700B Shock Absorbers

Linear Rate
Raised Height (75mm Lift)
50-100Kg

Part Number

C59-354

75mm Lift When Fitted With IMS59-50700C & MRA59-A700B Shock Absorbers

Shock Absorber

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 226mm / 8.8"

Part Number

IMS59-50574

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 226mm / 8.8"

Part Number

MRA59-A574

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-25mm Extension

Part Number

BS59-560

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-002K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
With Ball Joint

Part Number

UCA59-202K

Strut Top Cap

Part Number

SC59-001

Strut Spacer

5mm Trim Packer
(10mm Lift)

Part Number

PS59-4030

Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers

Diff Drop Kit

Part Number

DD59-527K

Must Fit When Using Long Travel Shock Absorbers GS59-574 To Prevent C.V. Bind
