Suitable For

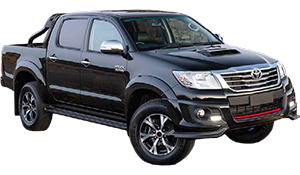

A vehicle image representing the page's contents

Type:

Hilux

Model:

Vigo - N70 (2005 to Mid 2015)

Variant:

3" Lift - (KUN/GGN 25/26, KZN 35/36)

Detail:

4x4 Single Cab, Extra Cab, Dual Cab,
75mm (3” Lift)

Download Catalogue Page

WARNING - 75MM (3”) OR HIGHER LIFT

The suspension components listed on this page are for off-road use only.

•Refer to Local Laws before Fitting to Registered/Road Vehicles

•An Engineering Certificate may be required

•Handling Characteristics will Diminish on Lifts Above 50mm (2”)

The following modifications (but not limited to) need to be made to the vehicle before the kit is fitted.

•Adjustable Panhard Rods

•Modified Leading / Trailing Arms

•Brake Hoses

•Extended Bump Stops

•Gear Box & Drive Line Modifications

•Steering Arms

•Swaybar Modification

Dobinsons Spring & Suspension do not accept any responsibility for injury caused to person or property through the use of the products listed on this page.

These products do not come with any warranty or guarantee.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Variable Rate
Raised Height (3" Lift)

Part Number

C59-798V

Variable Rate
Raised Height (3" Lift)
80-100Kg

Part Number

C59-782V

Shock Absorber

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 226mm / 8.9"

Part Number

IMS59-50220C

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 226mm / 8.89"

Part Number

MRA59-A220C

X - Centre of Eye to Spring Seat

Please Note That the Diff Drop Kit DD59-527K Must be Fitted When Using The Shock Absorber MR59-50220

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-30mm Extension

Part Number

BS59-560

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-003K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
With Ball Joint

Part Number

UCA59-203K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Strut Top Cap

Part Number

SC59-001

Strut Spacer

5mm Trim Packer
(10mm Lift)

Part Number

PS59-4030

Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers

Diff Drop Kit

Part Number

DD59-538K

Must Fit When Using Long Travel Shock Absorbers IMS59-50220C & MRA59-A220C To Prevent C.V. Bind.
Must Also Fit CV59-554K & CV59-557K.

C.V. Boot

Inner C.V. Boot

High Clearance Inner C.V. Boot Kit

Part Number

CV59-557K

Must Be Fitted For Lifts Over 50mm To Reduce C.V. Boot Wear.
Can Also Be Used As Genuine Replacement

Outer C.V. Boot

High Clearance Outer C.V. Boot Kit

Part Number

CV59-554K

Must Be Fitted For Lifts Over 50mm To Reduce C.V. Boot Wear.
Can Also Be Used As Genuine Replacement

Rear

Leaf Spring

It is a Requirement that the Brake Adjuster BA59-002 be Fitted When Using These Leaf Springs

3 + 1 Leaves
Raised Height (50mm Lift)
Medium Duty
Up to 100Kg Constant Load

Part Number

L59-047-RP

L59-047-RP Lifts Only 50mm to Provide a More Level Look

3 + 1 Leaves
Raised Height (75mm Lift)
Medium Duty
Up to 100Kg Constant Load

Part Number

L59-049-RP

Shock Absorber

Twin Tube Nitro-Gas
(Big Bore)

Part Number

GS59-651

IFP Monotube Shock (IMS)

Part Number

IMS59-50649

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A649

Spring & Shackle Bush Kit

Kit Contains:
2 x PB59-1503 (F)
4 x PB59-1501 (R)
4 x PB59-1502 (C)

Part Number

PB59-1094K

U-Bolt Kit

Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK59-053

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Brake Adjuster

Recommended when Raising Vehicle

Part Number

BA59-002

Not Required For Vehicles With ABS Brake System
