Suitable For

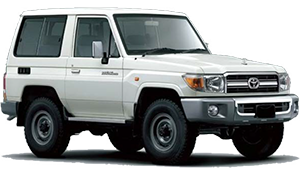

A vehicle image representing the page's contents

Type:

Landcruiser

Model:

70 Series (08/2009 on)

Variant:

71 Series - (GRJ71, HZJ71)

Detail:

4x4

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Variable Rate
Standard Height

Part Number

C59-454V

Linear Rate
Raised Height (40mm Lift)
Comfort Option

Part Number

C59-246

Linear Rate
Raised Height (40mm Lift)
50Kg

Part Number

C59-250

Linear Rate
Raised Height (50mm Lift)
Up to 100Kg

Part Number

C59-248

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS45-114

IFP Monotube Shock (IMS)

Part Number

IMS45-60114

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA45-A114

Shock Absorber Reservoir Mounting

Reservoir Mounting Bracket Kit

Part Number

RM59-041

Recommended For Optimal Remote Reservoir Fitment, Positioning & Strength

Steering Damper

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD59-825

Castor Kit

Raising Vehicle Will Effect Castor Angle. A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.

Adjustable Front Radius Arm Castor Kit
Angle Settings: ±0° or ±2.5°
4 x Polyurethane Eccentric Bushes

Part Number

PB59-503K

Fixed Rubber Front Radius Arm Castor Kit
Angle Setting: ±2.5°
4 x Rubber Eccentric Bushes

Part Number

RB59-522K

Under Body Bush Kit

Kit Includes Front & Rear Under Body Bushes

Kit Contains:
2 x Front Panhard Rod Bush
2 x Front Leading Arm to Diff Bush
4 x Front Leading Arm to Chassis Bush

Part Number

PB59-1261K

Rear

Leaf Spring

Right Hand Side
7 Leaves + 1 Spacer
Raised Height (50mm Lift)

Part Number

L59-071-R RH

Left Hand Side
7 Leaves + 1 Spacer
Raised Height (50mm Lift)

Part Number

L59-071-R LH

Right Hand Side
7 Leaves + 1 Spacer
Raised Height (50mm Lift)
250-350Kg Constant Load

Part Number

L59-074-R RH

Left Hand Side
7 Leaves + 1 Spacer
Raised Height (50mm Lift)
250-350Kg Constant Load

Part Number

L59-074-R LH

Shock Absorber

Twin Tube Nitro-Gas
Comfort Option
(Big Bore)
Not for Loaded Vehicles

Part Number

GS45-115

Twin Tube Nitro-Gas
Standard Height
(Big Bore)

Part Number

GS59-079

Twin Tube Nitro-Gas
Long Travel
(Big Bore)

Part Number

GS59-703

IFP Monotube Shock (IMS)

Part Number

IMS45-60115

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA45-A115T

Includes Piggy Back Mounts (RM66-040)

Universal Reservoir Mount Bracket (RM80-005) May Be Required If Standard Mounts Do Not Work (Sold Separately)

Spring & Shackle Bush Kit

Kit Contains:
8 x PB59-1537 (F, R)
4 x PB59-1536 (C)

Part Number

PB59-1100K

U-Bolt Kit

Kit Contains:
2 x UB59-453-3

Part Number

UB59-453-3K

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK59-051

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-057
