Suitable For

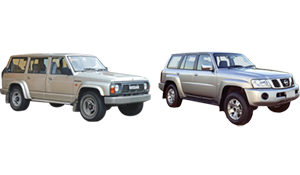

A vehicle image representing the page's contents

Type:

Patrol, Safari

Model:

Y60 GQ (1987 to 1998), Y61 GU (1997 on)

Variant:

LWB Wagon & Pickup / Utility (3" FLEXI Lift)

Detail:

Wagon & Pickup / Utility,
75mm (3” FLEXI Lift)

Download Catalogue Page

WARNING - 75MM (3”) OR HIGHER LIFT

The suspension components listed on this page are for off-road use only.

•Refer to Local Laws before Fitting to Registered/Road Vehicles

•An Engineering Certificate may be required

•Handling Characteristics will Diminish on Lifts Above 50mm (2”)

The following modifications (but not limited to) need to be made to the vehicle before the kit is fitted.

•Adjustable Panhard Rods

•Modified Leading / Trailing Arms

•Brake Hoses

•Extended Bump Stops

•Gear Box & Drive Line Modifications

•Steering Arms

•Swaybar Modification

Dobinsons Spring & Suspension do not accept any responsibility for injury caused to person or property through the use of the products listed on this page.

These products do not come with any warranty or guarantee.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

*Due to the flexi coils design requirements they are not recommended for heavily laden vehicles.
The vehicle Bump Stops MUST be extended regardless of the shock absorber length by a minimum of 40mm to prevent coil bind & over stressing.

All Coils Variable Rate

2.8L & 3.0L T/Diesel, 4.2L Diesel

Variable Rate

Part Number

C45-610V

Variable Rate
50-100Kg

Part Number

C45-612V

Variable Rate
80-100Kg

Part Number

C45-710V

4.5L & 4.8L Petrol, 4.2L T/Diesel

Variable Rate

Part Number

C45-612V

Variable Rate
50-80Kg

Part Number

C45-710V

Variable Rate
80-100Kg

Part Number

C45-730V

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-683

IFP Monotube Shock (IMS)

Part Number

IMS45-60914

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA45-A914

Shock Absorber Reservoir Mounting

Reservoir Mounting Bracket Kit

Part Number

RM45-007

Recommended For Optimal Remote Reservoir Fitment, Positioning & Strength

Steering Damper

Heavy Duty (Big Bore) - Complete with Fittings

Y61 GU
12/1997 to 02/2000 (Wagon)

Part Number

SD51-811

Y60 GQ
08/1989 - 1999 (Wagon & Pickup)

Part Number

SD45-836

Y60 GQ
1988 - 08/1989 (Wagon)

Part Number

SD45-834

Y60 GQ & Y61 GU
01/1999 on (Pickup)

Part Number

SD51-811

Y61 GU
02/2000 on (Wagon)

Part Number

SD45-801

Adjustable Monotube Heavy Duty - Complete with Fittings & Mounts

Y60 GQ & Y61 GU
Suits Draglinks and Panhard Rods 28-38mm Ø
May Require Existing Mounts To Be Cut Off

Part Number

SS51A811

Bump Stop

*Due to the flexi coils design requirements they are not recommended for heavily laden vehicles.
The vehicle bump stops MUST be extended regardless of the shock absorber length by a minimum of 40mm to prevent coil bind & over stressing.

Hydraulic Bump Stop

Hydraulic Bump Stop
Threaded Height Adjustable
66mm Body x 57mm Travel
(2"-4" Lift)

Part Number

HBS66-002

Hydraulic Bump Stop
Threaded Height Adjustable
66mm Body x 85mm Travel
(4"-6" Lift)

Part Number

HBS66-003

Hydraulic Bump Stop Mounting

Hydraulic Bump Stop Mounting Kit
(Weld In)
(Excludes Bump Stops)

Part Number

HBS45-007K

Rubber Bump Stop

Adjustable Soft-Hit Bump Stop
(Suits 0-56mm extension)

Part Number

BS45-528

Castor Kit

Raising Vehicle Will Effect Castor Angle.
A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.

Adjustable Front Radius Arm Castor Kit
Angle Settings: ±0°, ±2.5° or ±3.5°
4 x Polyurethane Eccentric Bushes

Part Number

PB59-503K

Fixed Rubber Front Radius Arm Castor Kit
Angle Setting: ±2.5°
4 x Rubber Eccentric Bushes

Part Number

RB59-522K

Radius Arm Bush

0 Degree Standard Radius Arm Bush Kit
Arm to Diff
4 x Rubber Bushes

Part Number

RB59-536K

Arm to Chassis Bush Kit
4 x Rubber Bushes

Part Number

RB45-535K

Drop Box Kit

5° Drop Box Kit (Sold as a Pair)
1 x Left Hand & 1 x Right Hand

Part Number

WA45-509K

May be Required for Vehicles Lifted Closer to 4”.
Extensive Modifications Are No Longer Required to Fit This Kit.
Gives a 5° of Castor Adjustment.
Leading Arm Modifications are not Required when Fitting this Part Number.

Castor Plate Kit

5° Castor Plate Kit
(Suits Both Arms)

Part Number

WA45-513K

Panhard Rod

Suits Y60 GQ & Y61 GU - Complete with Bushes

Adjustable Panhard Rod
Right Hand Drive
1992 on (Pickup)

Part Number

PR45-1402

Adjustable Panhard Rod
Left Hand Drive
1992 on (Pickup)

Part Number

PR45-1407

Adjustable Panhard Rod
Right Hand Drive
to 02/2000 (Wagon)

Part Number

PR45-1402

Adjustable Panhard Rod
Left Hand Drive
to 02/2000 (Wagon)

Part Number

PR45-1407

Suits Y61 GU Only - Complete with Ball Joint & Bush

Adjustable Panhard Rod
Right Hand Drive
02/2000 on (Wagon)

Part Number

PR45-1416

Adjustable Panhard Rod
Left Hand Drive
02/2000 on (Wagon)

Part Number

PR45-1409

Panhard Rod Bush

Does Not Fit OE
Upper/Chassis Bush

Part Number

RB45-6025

Does Not Fit OE
Lower/Diff Bush

Part Number

RB45-6027

Does Not Fit OE
Ball Joint-Upper/ChassisBush

Part Number

BJ45-6026

Draglink

Suits GQ/Y60

38mm Solid Adjustable

Part Number

SA45-1422

Spare Rod Ends To Suit SA45-1422

Part Number

SA45-022RE

Suits GU/Y61

38mm Solid Adjustable

Part Number

SA45-1424

Spare Rod Ends To Suit SA45-1424

Part Number

SA45-024RE

Gearbox Spacer Kit

Recommended For Reducing Drive Line Vibration On Raised Vehicles

Part Number

TC45-001K
