Suitable For

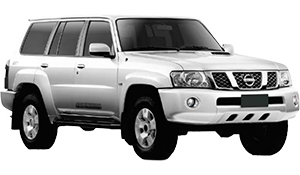

A vehicle image representing the page's contents

Type:

Patrol, Safari

Model:

Y61 GU (1997 on)

Variant:

LWB & SWB Wagon (2" Lift)

Detail:

VRGY61, TCSY61, WRGY61, WYY61, WTY61, WGY61,
SWB & LWB Wagon

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

SWB

Linear Rate
Raised Height (30mm Lift)

Part Number

C45-004

LWB
Suits 4.5L & 4.8L Petrol, 4.2L TD

Linear Rate
Standard Height

Part Number

C45-132

Linear Rate
Raised Height (30mm Lift)
Recommended

Part Number

C45-130

Linear Rate
Raised Height (45mm Lift)
60-110Kg

Part Number

C45-134

Linear Rate
Raised Height (50mm Lift)
0-50Kg

Part Number

C45-232

Linear Rate
Raised Height (60mm Lift)

Part Number

C45-134

LWB
Suits 2.8L & 3.0L TD, 4.2 Diesel

Linear Rate
Standard Height

Part Number

C45-140

Linear Rate
Raised Height (40mm Lift)
Recommended

Part Number

C45-138

Linear Rate
Raised Height (50mm Lift)

Part Number

C45-130

Linear Rate
Raised Height (50mm Lift)
60-100Kg

Part Number

C45-232

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS45-114

IFP Monotube Shock (IMS)

Part Number

IMS45-60114

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA45-A114

Shock Absorber Reservoir Mounting

Reservoir Mounting Bracket Kit

Part Number

RM45-007

Recommended For Optimal Remote Reservoir Fitment, Positioning & Strength

Steering Damper

Heavy Duty (Big Bore) - Complete with Fittings

12/1997 to 02/2000

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD51-811

02/2000 on

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD45-801

Some 02/2000 on Latin American Wagons May Require SD51-811.
Check End Configuration Before Ordering.

Adjustable Monotube Heavy Duty - Complete with Fittings & Mounts

Y60 GQ & Y61 GU
Suits Draglinks and Panhard Rods 28-38mm Ø
May Require Existing Mounts To Be Cut Off

Part Number

SS51A811

Bump Stop

Hydraulic Bump Stop

Hydraulic Bump Stop
Threaded Height Adjustable
66mm Body x 57mm Travel
(2"-4" Lift)

Part Number

HBS66-002

Hydraulic Bump Stop
Threaded Height Adjustable
66mm Body x 85mm Travel
(4"-6" Lift)

Part Number

HBS66-003

Hydraulic Bump Stop Mounting

Hydraulic Bump Stop Mounting Kit
(Weld In)
(Excludes Bump Stops)

Part Number

HBS45-007K

Rubber Bump Stop

Adjustable Soft-Hit Bump Stop
(Suits 0-56mm extension)

Part Number

BS45-528

Castor Kit

Raising Vehicle Will Effect Castor Angle. A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.

Adjustable Front Radius Arm Castor Kit
Angle Settings: ±0°, ±2.5° or ±3.5°
4 x Polyurethane Eccentric Bushes

Part Number

PB59-503K

Fixed Rubber Front Radius Arm Castor Kit
Angle Setting: ±2.5°
4 x Rubber Eccentric Bushes

Part Number

RB59-522K

Radius Arm Bush

0 Degree Standard Radius Arm Bush Kit
Arm to Diff
4 x Rubber Bushes

Part Number

RB59-536K

Arm to Chassis Bush Kit
4 x Rubber Bushes

Part Number

RB45-535K

Panhard Rod Bush

Does Not Fit OEM
Upper/Chassis Bush

Part Number

RB45-6025

Does Not Fit OEM
Lower/Diff Bush

Part Number

RB45-6027

Does Not Fit OEM
Ball Joint-Upper/Chassis Bush

Part Number

BJ45-6026

Draglink

38mm Solid Adjustable

Part Number

SA45-1424

Spare Rod Ends To Suit SA45-1424

Part Number

SA45-024RE

Gearbox Spacer Kit

Recommended For Reducing Drive Line Vibration On Raised Vehicles

Part Number

TC45-001K

Coil Spacer

15mm

Part Number

PS45-4010

30mm

Part Number

PS45-4011

Rubber Coil Seat

Replacement Upper Rubber Coil Seat

Part Number

RS45-4026
