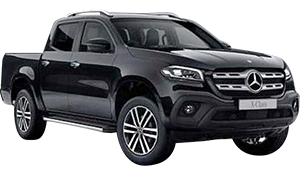

X-Class

Model:

X250, X350 (2018 on)

Variant:

Detail:

4x4

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Due to the Restricted Suspension Geometry, a Maximum of 40mm Lift is Achievable in the Front of this Vehicle.

2.3L Turbo Diesel X 250

Linear Rate
Standard Height
Heavy Duty
Up to 80Kg

Part Number

C45-254

Linear Rate
Raised Height (35mm Lift)
Up to 50Kg

Part Number

C45-278

Linear Rate
Raised Height (35mm Lift)
60-90Kg

Part Number

C45-280

3.0L Turbo Diesel X 350

Linear Rate
Raised Height (30mm Lift)
Up to 35Kg

Part Number

C45-484

Linear Rate
Raised Height (35mm Lift)
60-90Kg

Part Number

C45-486

Shock Absorber

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 106mm / 4.17”

Part Number

IMS45-50648

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 106mm / 4.17”

Part Number

MRA45-A648

X - Centre of Eye to Spring Seat

Control Arm

Upper Control Arm

6082 Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
Rubber Bushes
with Ball Joint
(Long Travel)

Part Number

UCA45-205K

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-35mm Extension

Part Number

BS59-560

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.
