Suitable For

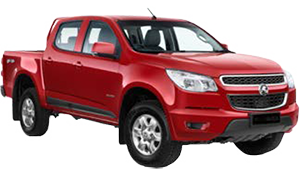

A vehicle image representing the page's contents

Type:

Colorado

Model:

RG (05/2012 on)

Variant:

3" Lift

Detail:

GM 1700, MMU 142 / 143 / 145 / 147 / 148,
75mm Lift (3"),
40mm & 75mm Lift Rear Springs To Level Vehicle

Download Catalogue Page

This vehicle has been issued with a recall notice to change the Coil Spring Stepped Isolator.
Take care when ordering Coil Springs or Shock Absorbers.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Vehicles With Stepped Type Upper Coil Isolator Require SC59-002

Linear Rate
Raised Height (75mm Lift)

Part Number

C59-314

Linear Rate
Raised Height (75mm Lift)
70-100Kg

Part Number

C59-354

Linear Rate
Raised Height (85mm Lift)
Up to 70Kg

Part Number

C59-354

Linear Rate
Raised Height (85mm Lift)
70-100Kg

Part Number

C59-318

Shock Absorber

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 190mm / 7.48”

Part Number

IMS21-50472

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 190mm / 7.48”

Part Number

MRA21-A472-1

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-20mm Extension

Part Number

BS59-560

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC59-002

Diff Drop Kit

Part Number

DD21-590K

Decreases CV Angle

DD21-590K Must Not Be Fitted Without UCA Ball Joint Spacer WA21-546K

Ball Joint Spacer

UCA Ball Joint Spacer

Part Number

WA21-546K

UCA Ball Joint Spacer WA21-546K Must Not Be Fitted Without DD21-590K

Rear

Leaf Spring

3 + 3 Leaves
Medium Duty
Raised Height (40mm Lift)
Up to 100Kg Constant Load

Part Number

L21-140-R

4 + 3 Leaves
Heavy Duty
Raised Height (40mm Lift)
250Kg Constant Load (Recommended)

Part Number

L21-141-R

5 + 3 Leaves
Super Heavy Duty
Raised Height (40mm Lift)
450Kg Constant Load

Part Number

L21-142-R

2 + 1 Leaves (Parabolic)
Raised Height (50mm Lift)
Up to 70Kg Constant Load
Comfort Option

Part Number

L21-182-RP

2 + 1 Leaves (Parabolic)
Raised Height (75mm Lift)
Up to 70Kg Constant Load
Comfort Option

Part Number

L21-183-RP

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS43-801

IFP Monotube Shock (IMS)

Part Number

IMS21-50471

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA43-A801

Spring & Shackle Bush Kit

Kit Contains:
2 x PB59-1503 (F)
4 x PB59-1530 (R)
4 x PB59-1532 (C)

Part Number

PB21-1105K

U-Bolt Kit

Suits L21-140-R
Kit Contains:
2 x UB59-453-2

Part Number

UB59-453-2K

Suits L21-141-R
Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Suits L21-142-R
Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Suits L21-182-RP
Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Suits L21-183-RP
Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK21-059

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060
